Stainless Steel Coal Fired Boiler Fin Tube Cold Finished For Heat Exchanger

Brand Name : HDB

Model Number : Boiler Fin Tube

Certification : ISO9001 , SGS , TUV , ASME , EN

Place of Origin : China

MOQ : 10 tons

Delivery Time : 30~50 days

Packaging Details : Iron Frame Package

Product Name : Spiral Finned Tube

Material : Stainless Steel

Application : Heater Parts,Heat Exchanger

Loading : Shanghai

Certificate : ASME, ISO90001,SGS,EN

Keyword : High Frequency Welded Finned Tube

Contact Now

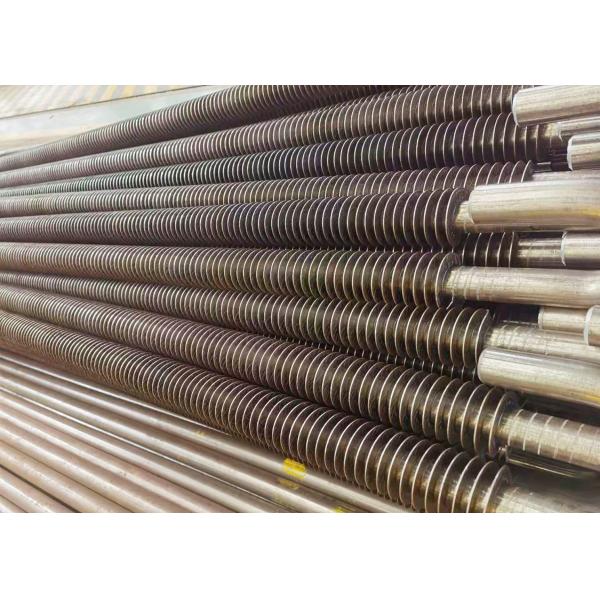

Stainless Steel Spiral Finned Tube Heat Exchanger Boiler Parts for Coal-fired Boilers

Detailed description:

Spiral finned tube is an efficient heat transfer element with spiral fins. Its heat transfer area is several times to dozens of times that of bare tube, which can strengthen heat transfer, reduce flow resistance and metal consumption, so as to improve the economy and operation reliability of heat exchange equipment.

At present, spiral finned tubes have been widely used in various boilers. Spiral finned tubes can be manufactured by various methods. At present, the finned tubes used in heat exchange equipment such as boilers and pressure vessels are mainly manufactured by the following methods: high frequency resistance welding spiral finned tubes, brazed spiral finned tubes and integral spiral finned tubes.

Stainless Steel Coal Fired Boiler Fin Tube Cold Finished For Heat Exchanger

All types of fin tube we could supply are shown as below:

PRODUCT	TYPE	TUBE MATERIAL	FIN MATERIAL	TUBE SIZE	FIN SIZE
Heat Exchanger Finned Tube	Extruded Fin Tube	All Kind of Material can be applied	Aluminum A1100	15.88~50.8	7~11.5FPI
					Fin Height Max 16mmH
	L-Foot Fin Tube	All Kind of Material can be applied	Copper C1100, C1220	12.70~50.8	7~11.5FPI
	(Wrap On Type)				Fin Height Max 16mmH
	G-Fin Tube (Embedded Type)		Aluminum A1100, A1050, A1060
	High Frequency Welded Finned Tube	A179 Carbon Steel Tube	Carbon Steel Tube	12.70~160	1.5~7FPI
		Stainless Steel Tube	Stainless Steel Tube		0.8~3.2mm. Thickness
		Alloy Steel Material	Alloy Steel Material
	Integral Copper & Copper Alloy High Finned Tube	C12200, C11000, C70600	C12200, C11000, C70600	15.88~22.23	5~9FPI
					Max 12mm. H
	Oval Finned Tube	Carbon Steel Tube	Carbon Steel Tube	All Size Available	5~15FPI
		Stainless Steel Tube	Stainless Steel Tube
		Alloy Steel Material	Alloy Steel Material
		Copper & Copper Alloy Tube	Copper & Copper Alloy Tube
Monometallic Fin Tube	Low Fin Tube	Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc.	--	9.52~40	12, 16, 19 28 FPI, etc.
	Turbo-C Tube
	Turbo-E Tube
	Corrugated Tube	All Kind of Material	--	6.35~40	2~9FPI
