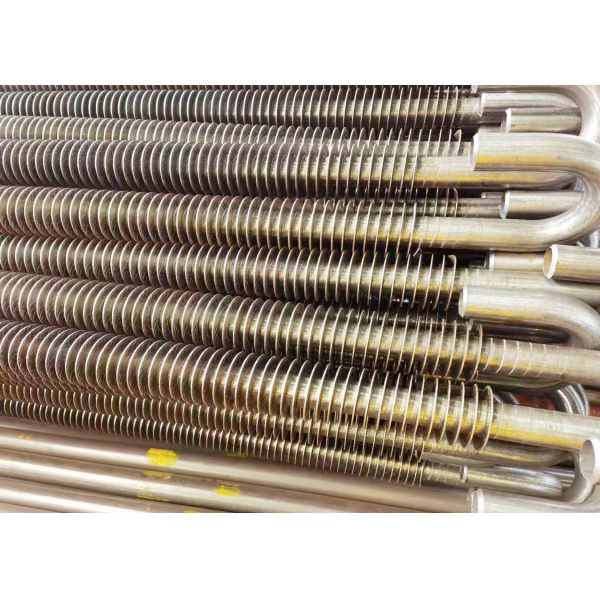

Carbon Steel Spiral Finned Tube with Bends as Heat Exchanger for Coal-fired Boilers
Detailed description:
Spiral finned tube is an efficient heat transfer element with spiral fins. Its heat transfer area is several times to dozens of times that of bare tube, which can strengthen heat transfer, reduce flow resistance and metal consumption, so as to improve the economy and operation reliability of heat exchange equipment.
At present, spiral finned tubes have been widely used in various boilers. Spiral finned tubes can be manufactured by various methods. At present, the finned tubes used in heat exchange equipment such as boilers and pressure vessels are mainly manufactured by the following methods: high frequency resistance welding spiral finned tubes, brazed spiral finned tubes and integral spiral finned tubes.
Spiral finned tube has been widely used in the heat recovery of boiler economizer, air preheater and waste heat boiler, as well as the heat exchange equipment of chemical industry, pressure vessel and other fields. The capacity of units used in boilers is increasing from small to large.
Advantages of finned tube
1) The effective space increases the heat transfer area and improves the heat transfer effect.
2) The utility model can reduce the occupied space of the heat transfer surface and the volume of the heat transfer surface, which is especially suitable for the fast loading boiler.
3) Reduce the cost of equipment, improve the safety of equipment.
4) Due to the decrease of pressure drop on water side, the operation cost is reduced.
5) The stiffness of the finned tube is increased, and the anti-seismic ability of the tube is improved.
All types of fin tube we could supply are shown as below:
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH |
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI |
| (Wrap On Type) | Fin Height Max 16mmH |
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | |
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness |
| Alloy Steel Material | Alloy Steel Material | |
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI |
| Max 12mm. H |
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI |
| Stainless Steel Tube | Stainless Steel Tube |
| Alloy Steel Material | Alloy Steel Material |
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube |
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube |
| Turbo-E Tube |
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
