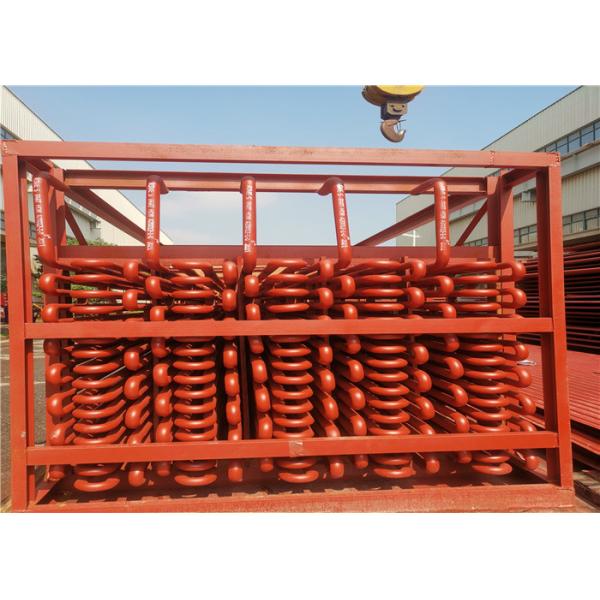

ASME Stainless Steel Superheater Tubes For New Condition Renewable Energy Boilers

Brand Name : HD Boiler

Model Number : Superheater

Certification : ASME, ISO9001, EN

Place of Origin : China

MOQ : 100 pcs

Price : 2,000 - 5,000 USD per pc

Payment Terms : T/T, L/C at sight

Supply Ability : About 1,000 tons per month

Delivery Time : Within 90 Days after getting the down payment or L/C

Packaging Details : Sea worthy Packing for Exporting with Iron Frame

Type : Natural Circulation

Application : boiler maintaince,Boiler Pipe,Heating element

Material : Stainless steel

Usage : Industrial,Power Station,Thermal power plant/station boiler

Surface Treatment : Painting, Sandblasting, Galvanizing

Fuel : Biomass, Waste

Keyword : Boiler Superheater Tube

Safety : High Safety

Contact Now

ASME Stainless Steel Superheater Tubes for New Condition Renewable Energy Boilers

What’s the key difference between them?

A superheater heats steam before turbine entry, while a reheater heats it after partial expansion.

Differences

Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

 1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.

ASME Stainless Steel Superheater Tubes For New Condition Renewable Energy Boilers

Principle

• Principle of superheater is similar to steam generating tubes of boiler.

• The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.

Application

Use for heating saturated steam, steam temperature could be up to 900 degree C.

Superheater Capacity Upgrades to Increase Power Generation

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

ASME Stainless Steel Superheater Tubes For New Condition Renewable Energy Boilers
